Tungsten Carbide Orifice Insert
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | φ19*φ2*3.3 or others |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Carbide | Applications: | For Use With High-pressure TC Tips |
|---|---|---|---|
| Chemical Composition: | WC+Cobalt | Surface: | Grinded Or Polished |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | Smooth Finish: | 0.2-0.8 |
| Sintering: | HIP Treatment | ||
| High Light: | tungsten carbide material products,tungsten carbide tools |
||
Product Description

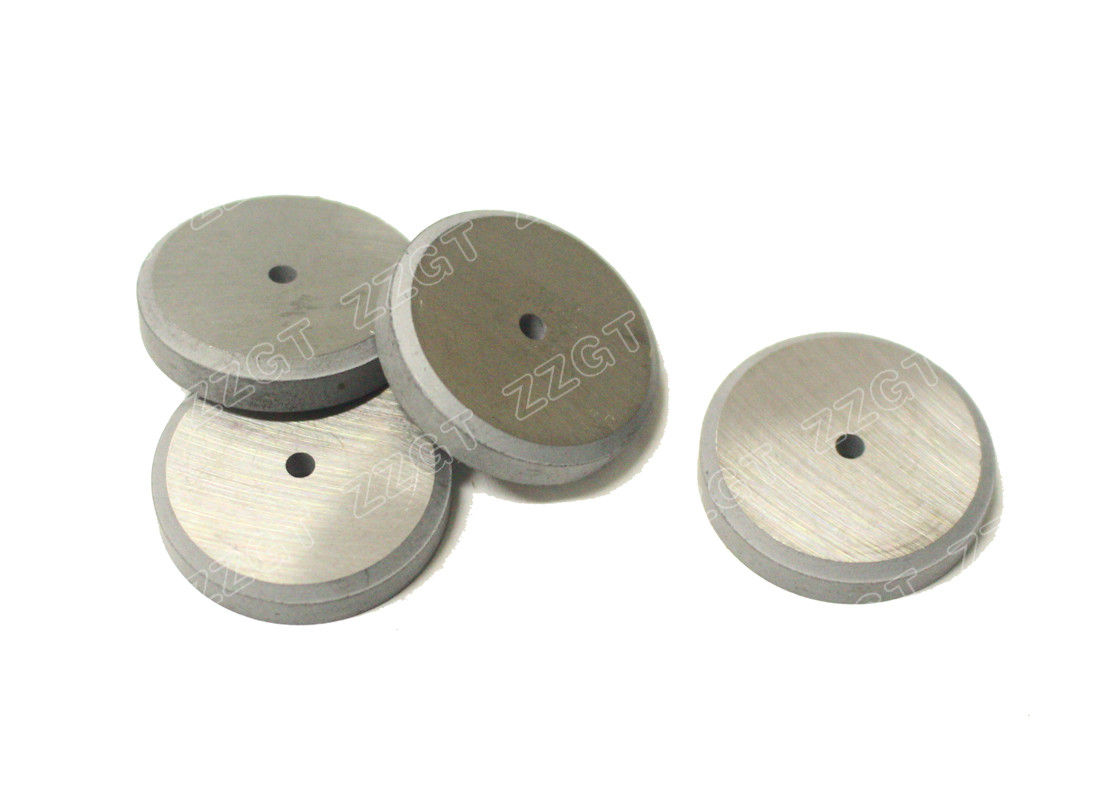

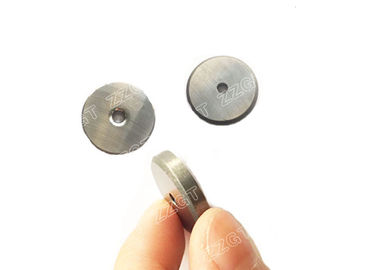

Tungsten Carbide Orifice Insert
Tungsten Carbide Orifice Insert for High-Wear Spray Applications 2mm hole
Product Features :
• This tungsten carbide Orifice insert produces a fine finish; can be use with high-pressure TC tips.
• Erosion- and corrosion-resistant tungsten carbide orifice insert provides long wear life
• Can be used with a wide range of assemblies and extensions
Application Range:
• Paint spraying
• Automotive sealants and protective coatings
• Airless paint spraying
• Applying slurry to ceramic tiles
| Product Name | tungsten carbide orifice |
| Material | tungsten carbide |
| Size | φ19*φ2*3.3 or others |
| Size Tolerance | OD: 0~-0.15 ID:0~-0.1 Thickness: 0~+0.3 |
| Color | as picture |
| Recommend Grade | YG8 ( 89.5HRA ) |
| Grain Size | Medium |
| Application | for Chemical Industry |
| Processing Treatment | grinded two faces |
| Product Features | Long Lasting, Wear resistance,Premium quality |
| Certification | ISO9001 |
Avaialble Sizes:
| Sr No. | Size(mm) | ||
| OD | ID | Thickness | |
| 1 | 19 | 1 | 3.3~3.6 |
| 2 | 19 | 1.6 | |
| 3 | 19 | 1.8 | |
| 4 | 19 | 2 | |
| 5 | 19 | 2.2 | |
| 6 | 19 | 2.4 | |
| 7 | 19 | 2.5 | |
| 8 | 19 | 2.6 | |
| 9 | 19 | 2.8 | |
| 10 | 19 | 3 | |
| ………… | |||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Application Show (Spraying):
Packing Process:
Packing Details : In cartons,wooden boxes,plastic boxes or customized.
