35*16*3*32 Tungsten Carbide Die Set For Nuts And Standard Bolts Making

China 35*16*3*32 Tungsten Carbide Die Set For Nuts And Standard Bolts Making supplier

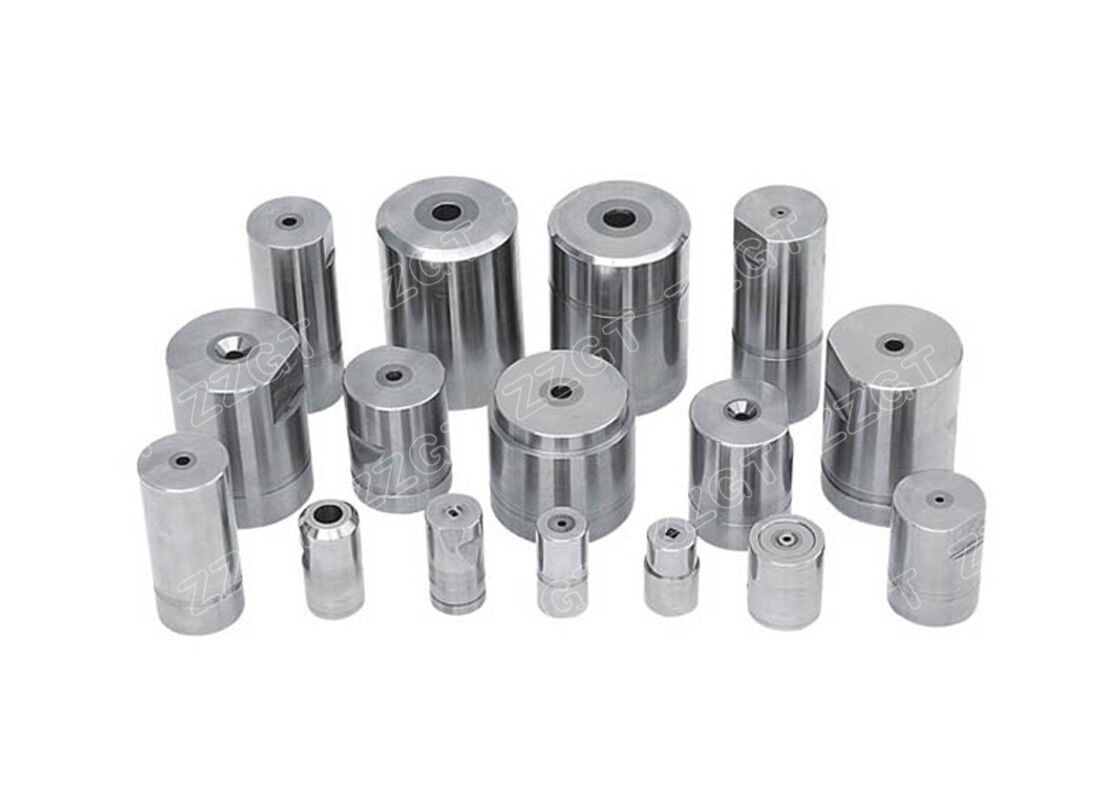

Large Image :  35*16*3*32 Tungsten Carbide Die Set For Nuts And Standard Bolts Making

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: 35*16*3*32 or others

Payment & Shipping Terms:

Minimum Order Quantity: 100KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Contact Now
Detailed Product Description
Material: Tungsten Carbide Surface Treatment: Clean Ground
Applications: For Fastener Industry Purpose: Forging
Chemical Composition: WC+Cobalt Roughness: 0.8 Or Others
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air Steel Material: H13 Or Others
Carbide Material: YG20C Or Others

Tungsten Carbide Dies Set 35*16*3*32 for Nuts and Standard Bolts Making





Carbide Dies Descriptions :

Tungsten carbide Dies are widely used for making finished die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die etc.



We can provide full set of steel case and carbide pellets,welcome to contact us for further discussion.



Product Name

Tunsten Carbide Dies

Material

steel case+cemented carbide

Size

35*16*3*32 or custom-made

Size Tolerance

Finished size or as customer's request

Color

Gray

Recommend Grade

H13+YG20C or as customer request

Carbide Grain  Size

Coarse Grain

Application

For Fastener Industry

Processing Treatment

Clean ground or Polished etc

Product Features

Long life, good impact resistance

Certification

ISO9001



35*16*3*32 Tungsten Carbide Die Set For Nuts And Standard Bolts Making



Carbide Grade Performance:

Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5

For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.

YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
YG25C 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







Size Options:

Type

OD

ID

H

Tolerance

OD

Id

H

φD10~14×φd

10~14

1.0~5.0

15~40

D×+3%

d×-3%

H×+3%

φD15~24×φd

15~24

1.5~8.0

20~60

φD25~40×φd

25~40

1.5~25

30~60

φD42~95×φd

42~95

2.0~50

20~100

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Applications:

35*16*3*32 Tungsten Carbide Die Set For Nuts And Standard Bolts Making



Packing Process:

35*16*3*32 Tungsten Carbide Die Set For Nuts And Standard Bolts Making





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
