K30 Tungsten Carbide Latheral stud For Ore Mining Crusher Machine HPGR
Produktdetails:
| Herkunftsort: | Zhuzhou, Hunan, China |
| Markenname: | ZZGT Li |
| Zertifizierung: | ISO9001-2015 |
| Modellnummer: | φ15x35 |
Zahlung und Versand AGB:
| Min Bestellmenge: | Muster werden angenommen |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Papierschachtel, Holzkarton oder kundenspezifische Kartons werden akzeptiert |
| Lieferzeit: | 7-15 Tage |
| Zahlungsbedingungen: | L/C, D/A, T/T, Western Union, Moneygram |
| Versorgungsmaterial-Fähigkeit: | 400T/Jahr |
|
Detailinformationen |
|||
| Dienstleistungen: | 24 Stunden | Material: | 100% Jungfrau Wolframpulver |
|---|---|---|---|
| Besonderheit: | Langlebig und langlebig | Oberflächenbeschaffenheit: | Erdung und Passivierung |
| Grad: | YG15/YG12 | Anwendung: | HPGR |
| Härte: | HRA 87,8 ~ 90,5 | Verarbeitungsart: | Form-Drücken |
| Hervorheben: | Tungsten carbide latheral stud,HPGR crusher machine stud,Ore mining tungsten carbide bit |
||
Produkt-Beschreibung
K30 Tungsten Carbide Lateral Stud For Ore Mining Crusher Machine HPGR
Product Overview
Tungsten carbide side blocks are critical wear-resistant components used in roller presses. They are strategically installed on the press frame to protect the roller shafts and bearing housings from direct impact and severe abrasive wear caused by the processed material. Leveraging the exceptional hardness and durability of tungsten carbide, these side blocks significantly extend the operational lifespan of the entire roller press system. Their primary function is to shield these vital and expensive parts, thereby effectively reducing maintenance frequency, operational downtime, and long-term replacement costs.
Company Advantages
- Factory direct pricing with customized solutions
- ISO 9001 & 14001:2015 Certified
- 100% tungsten carbide raw material
- Advanced technology with automatic pressing, HIP sintering and strict quality inspection
- Precision tolerance of ±0.005mm for polished and ground surfaces
- Timely delivery guaranteed
Product Specifications
| Product Name | Cemented Carbide Edge Blocks |
|---|---|
| Material | Hard metal |
| Size | Customized |
| Size Tolerance | Standard tolerance |
| Color | Silver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Middle Grain Size |
| Application | Used for mining crusher studs |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Grades | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14 | ≥3400 | 87.5 | Drawing dies for steel tubes and rods; punching, stamping, forging tools under large stress |
| YG20 | 13.5 | ≥3800 | 85.5 | Stamping dies for watch parts, spring plates, battery jars, screws, screw caps |
| YG15C | 14 | ≥4000 | 86.5 | Oil cone drill bits; cutting medium soft and hard rocks; wood processing |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant applications |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers |

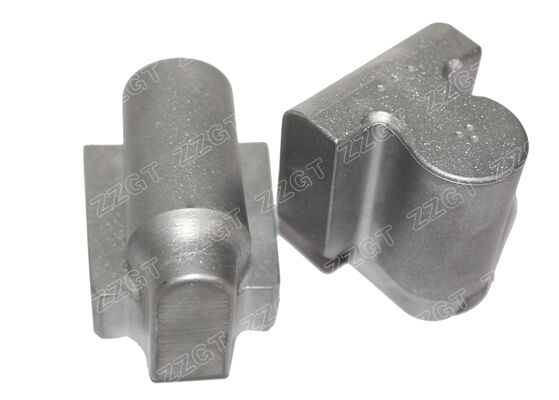

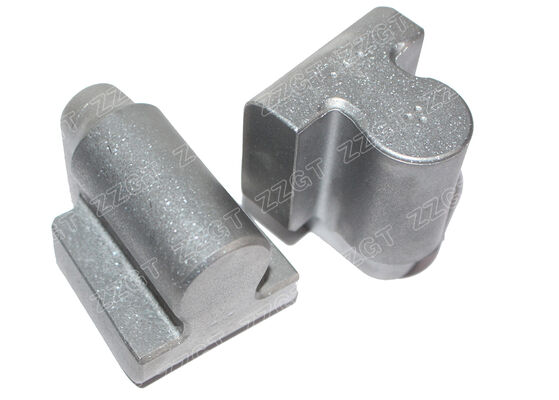

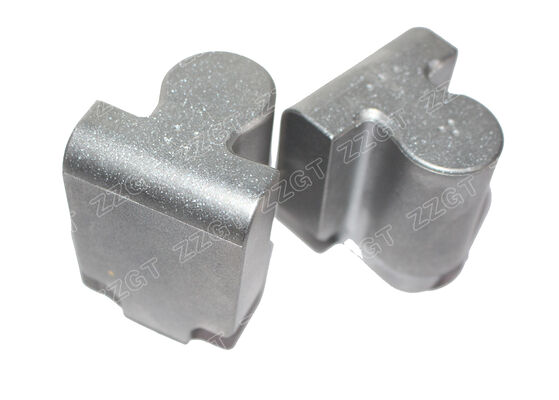

Product Image
Factory Equipment
Advanced production equipment at Zhuzhou Gingte Cemented Carbide Co., Ltd includes:
- HIP sintering furnace
- Spraying drying system
- 200T TPA automatic press machine
- CNC Grinder
- Spark erosion machine
- Wire cutting machine
Contact Information
For further questions, please contact our sales engineer:
Name: Daisy Tian
Email: zzgt3@gtcarbide.com
Mobile/WhatsApp: +8613874120766
