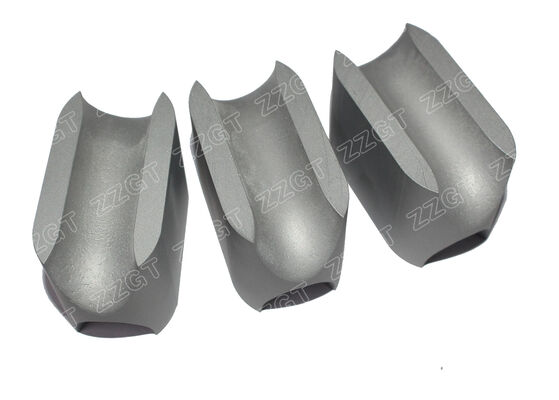

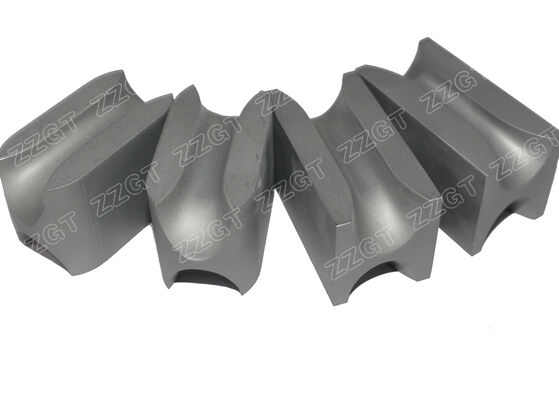

YG8 Tungsten Carbide Straightening Blocks
Produktdetails:
| Herkunftsort: | Zhuzhou, Hunan, China |
| Markenname: | ZZGT Li |
| Zertifizierung: | ISO9001-2015 |
| Modellnummer: | 60*60*20*φ24,5 |
Zahlung und Versand AGB:
| Min Bestellmenge: | Muster werden angenommen |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Papierschachtel, Holzkarton oder kundenspezifische Kartons werden akzeptiert |
| Lieferzeit: | 7-15 Tage |
| Zahlungsbedingungen: | L/C, D/A, T/T, Western Union, Moneygram |
| Versorgungsmaterial-Fähigkeit: | 400T/Jahr |
|
Detailinformationen |
|||
| Dienstleistungen: | 24 Stunden | Material: | 100% Jungfrau Wolframpulver |
|---|---|---|---|
| Besonderheit: | Langlebig und langlebig | Oberflächenbeschaffenheit: | Boden |
| Grad: | K20 | Anwendung: | Richten für Stab- und Stabwalzwerke |
| Hervorheben: | YG8 tungsten carbide straightening blocks,tungsten carbide wear resistant blocks,straightening blocks with YG8 alloy |
||
Produkt-Beschreibung
Tungsten carbide straightening blocks are high-precision, wear-resistant tooling components used primarily in wire, rod, and tube straightening machines. They play a critical role in the metalworking industry by removing bends, twists, and irregularities from elongated metal products to achieve strict dimensional straightness and geometrical tolerances.
- Exceptional Wear Resistance: Made from premium-grade tungsten carbide (WC-Co), these blocks offer superior hardness (typically 85-92 HRA) and abrasion resistance compared to traditional tool steel blocks.
- Extended Service Life: The extreme durability of carbide provides a vastly longer operational lifespan, leading to lower long-term tooling costs.
- High Precision & Stability: Maintain precise groove profile and dimensional integrity under high pressure and continuous operation.
- Excellent Compression Strength: Capable of withstanding significant radial forces involved in pressing and bending metal stock.
- Smooth Surface Finish: Fine microstructure allows for very smooth surface finish on guiding grooves, minimizing surface drag.

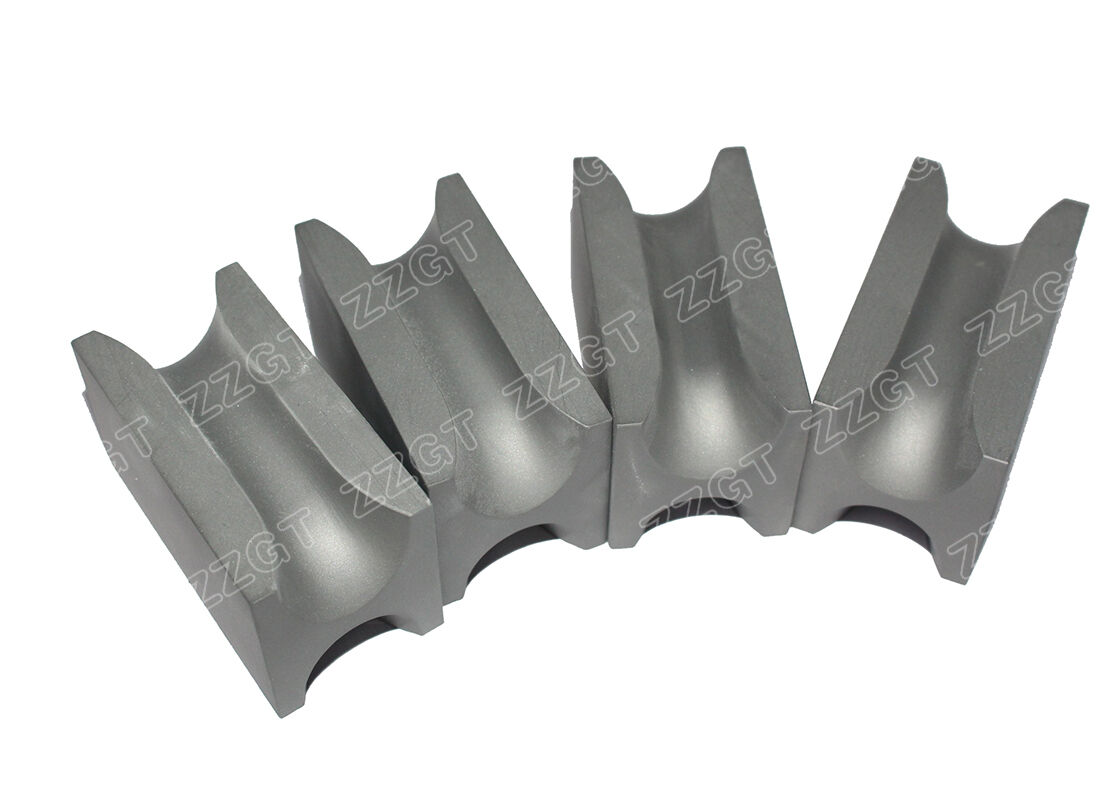

Straightening blocks feature precisely machined grooves or contours that match the diameter and shape of incoming material. Crafted from sintered tungsten carbide (WC-Co), these carbide inserts are mounted within a straightening frame, typically opposing rotating rollers.
The metal stock passes through staggered carbide blocks, undergoing repeated reverse bending. The exceptional compressive strength and wear-resistant properties ensure groove profile remains stable under high radial forces, maintaining precise straightening action.
| Product Name | Cemented Carbide Straightening Blocks |
| Material | Hard metal |
| Size | Customized |
| Size Tolerance | Referring the drawing |
| Color | Silver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Middle Grain Size |
| Application | For Straightening Blocks |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
| Grades | Density g/cm³ | T.R.S MPa | Hardness HRA | Performance & Application Recommended |
|---|---|---|---|---|
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14 | ≥3400 | 87.5 | Drawing dies of steel tubes and rods under high compressibility ratio |
| YG20 | 13.5 | ≥3800 | 85.5 | Stamping dies for watch parts, spring plates, battery jars |
| YG15C | 14 | ≥4000 | 86.5 | Oil cone drill bits, cutting medium soft and hard rocks |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers |
- HIP sintering furnace
- Spraying Drying system
- 200T TPA automatic press machine and 500T oil pressing machine
- CNC Grinder and CNC machine
- Spark Erosion machine
- Wire cutting machine, etc.
