• Cemented Carbide Dies / Standard Bolts Punching Dies Various Sizes Available
Cemented Carbide Dies / Standard Bolts Punching Dies Various Sizes Available

Cemented Carbide Dies / Standard Bolts Punching Dies Various Sizes Available

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: various sizes for options

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Cemented Carbide Applications: For Standard Bolts Making
Purpose: Cold Heading Chemical Composition: Tungsten+cobalt
Roughness: 0.6 Or Others Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air
Grain Size: 1.6~2.4 TRS: ≥3500
Density: 13.9~14.1 G/cm³
High Light:

tungsten carbide products

,

carbide wire drawing dies

Product Description

Cemented Carbide Dies / Standard Bolts Punching Dies Various Sizes Available

Cemented Carbide Dies Standard Bolts Punching Dies with Various Size Service





Product Quick Detail :

1. Product Name: Cemented Carbide Dies

2. Material: Cemented Carbide

3. Size: various sizes or as customer's request

4. Size Tolerance: finished or as customer's request

5. Shape: Round Shape with hole

6. Recommend Grade: YG20C YG22C etc

7. Grain Size: Coarse Grain

8. Sintering: HIP sintering

9. Surface Treatment: Finished

10. Product Features: high strength, long life

11. Certification: ISO9001





Product Descriptions:

Cemented carbide punching dies are typically made by tool and die makers and put into production after mounting into a press. The die is a metal block that is used for forming materials like sheet metal and plastic. For the vacuum forming of plastic sheet only a single form is used, typically to form transparent plastic containers (called blister packs) for merchandise. Vacuum forming is considered a simple molding thermoforming process but uses the same principles as die forming. For the forming of sheet metal, such as automobile body parts, two parts may be used, one, called the punch, performs the stretching, bending, and/or blanking operation, while another part, called the die block, securely clamps the work piece and provides similar, stretching, bending, and/or blanking operation. The work piece may pass through several stages using different tools or operations to obtain the final form. In the case of an automotive component there will usually be a shearing operation after the main forming is done and then additional crimping or rolling operations to ensure that all sharp edges are hidden and to add rigidity to the panel.





Why Choose Us ?

1. Proffessional tungsten carbide manufacturer over 10 years.

2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.

3. Annual production capacity over 400tons.

4. More than 10000 sets of exisiting non-standard molds,fast delivery!

5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.

6. ISO9001:2008 Quality Management System.





Various Grades for Options:

Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5

For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.

YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
YG25C 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







Various Sizes for Options:

Type

OD

ID

H

Tolerance

OD

Id

H

φD10~14×φd

10~14

1.0~5.0

15~40

D×+3%

d×-3%

H×+3%

φD15~24×φd

15~24

1.5~8.0

20~60

φD25~40×φd

25~40

1.5~25

30~60

φD42~95×φd

42~95

2.0~50

20~95

For any other sizes we are able to custom-made according to clients’ requirements or drawings.

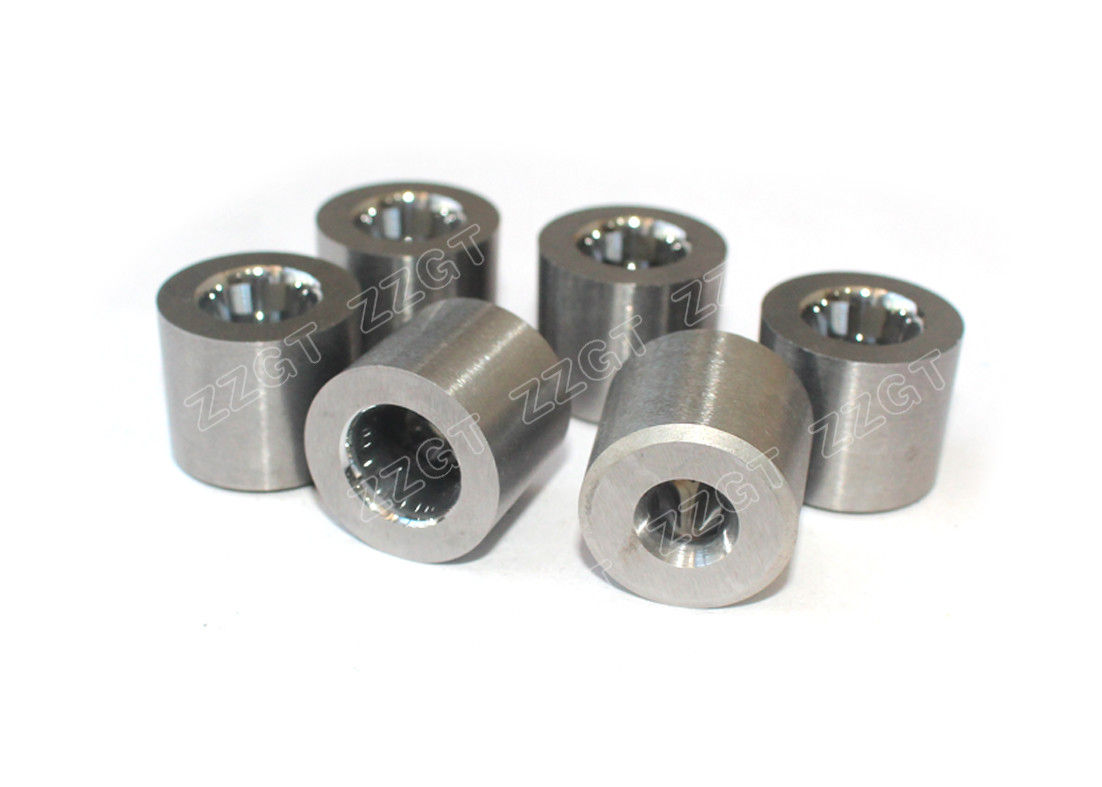

Product Show and Performance:

Cemented Carbide Dies / Standard Bolts Punching Dies Various Sizes Available 0





Applications:

Cemented Carbide Dies / Standard Bolts Punching Dies Various Sizes Available 1



Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008





Packing Process:

Cemented Carbide Dies / Standard Bolts Punching Dies Various Sizes Available 2





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.





Contact us at your free  time when you are interested in our products : )
