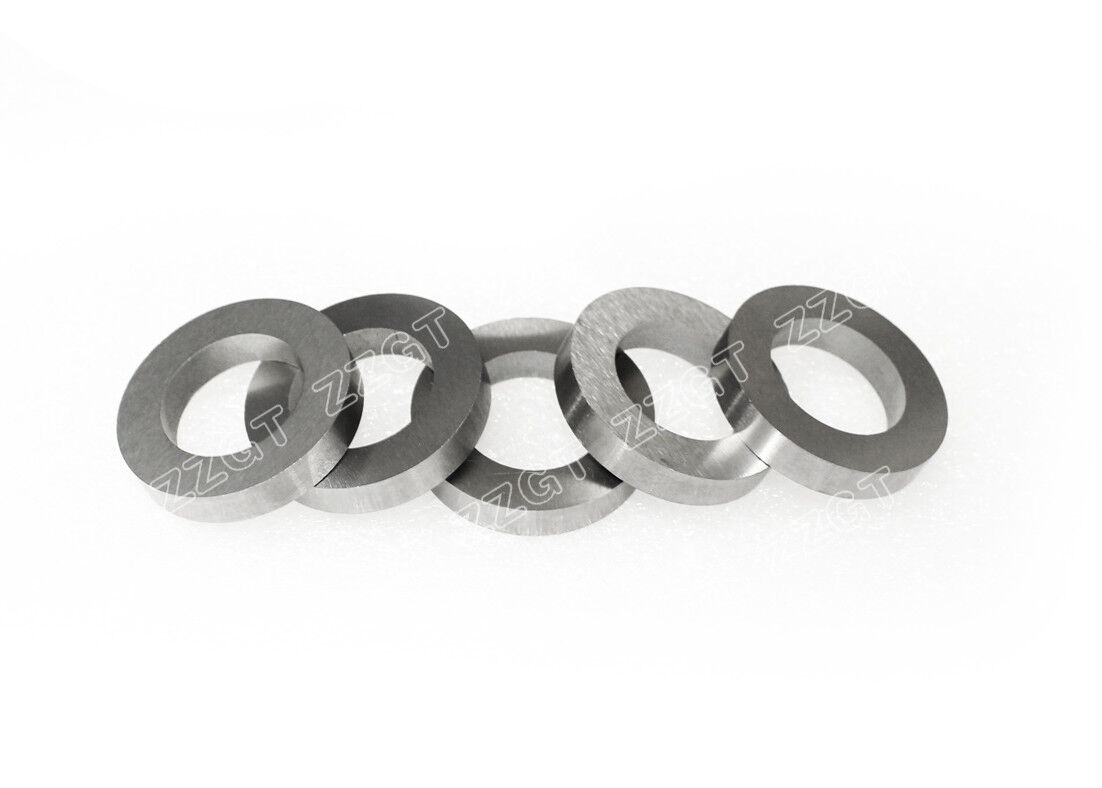

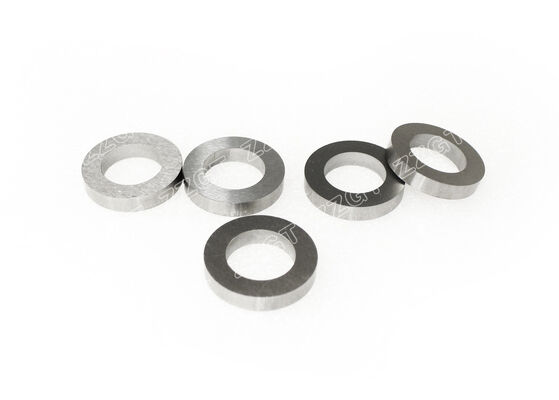

Nickel Base 8% Ni YN8 Tungsten Carbide Rings For Sealing Fittings

Nickel Base 8% Ni YN8 Tungsten Carbide Rings For Sealing Fittings

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001:2015
Model Number: tungsten cabride seal ring

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: Tungsten Carbide
Grade: YN8 Surface Finish: 0.8Ra
OEM/ODM: Accept Application: On Seal Parts
High Light:

YN8 Tungsten Carbide Rings

,

0.8Ra Tungsten Carbide Rings

,

yn8 tungsten steel carbide rings

Product Description

Nickel Base 8% Ni YN8 Tungsten Carbide Rings For Sealing Fittings

Nickel Base 8% Ni Tungsten Carbide Rings For Sealing Fittings





About Us:



Our tungsten carbide rings are made of the hardest metal on earth,they are stronger than titanium rings and longer lasting than gold rings. The rings are normally used as seals, disc cutters, gauges,etc.The tungsten carbide seal ring can be divided into both of the rotating seal ring and static seal ring,and constitutes mechanical seal together with the spring,rubber seal ring and steel jacket.The seal ring is installed on the pump body and rotating axle,and forms through the end face of the rotating and static ring a liquid or gas seal.If there are something you need, please do not hesitate to e-mail us.







Product Description:

Product Name tungsten carbide rings
Material tungsten steel
Size 36*26*5
Size Tolerance According to the drawing
Color as picture
Recommend Grade YN8
Grain Size Medium Grain Size
Application Installed on the pump body and rotating axle
Processing Treatment HIP sintering
Product Features Long life,anti-corrosion
Certification ISO9001-2015





Grade Performance

Grade Main Chemical Component (%) Hardness (≥HRA) Density (g/cm³) T.R.S
(≥N/mm²)
WC Co Ni Tic Other
YN6 94   6     89 14.5-14.9 1500
YN8 92   8     88 14.4-14.8 1650
YG6 94 6       89.5 14.7-15.1 1550
YG8 92 8       89 14.6-14.9 1850
YG15 85 15       87 13.9-14.2 2500





More Details:

Nickel Base 8% Ni YN8 Tungsten Carbide Rings For Sealing Fittings 0





Factory Equipments:

There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc



Nickel Base 8% Ni YN8 Tungsten Carbide Rings For Sealing Fittings 1
