• Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar
  • Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar
  • Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar
  • Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar

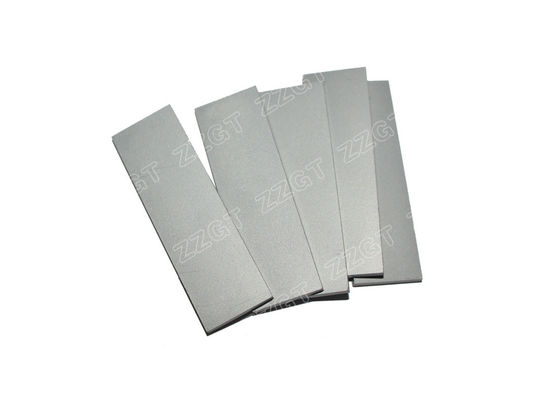

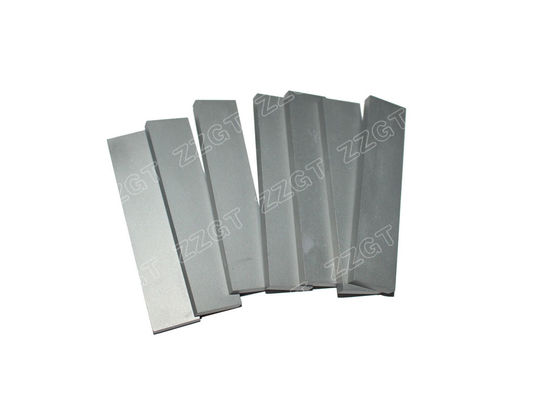

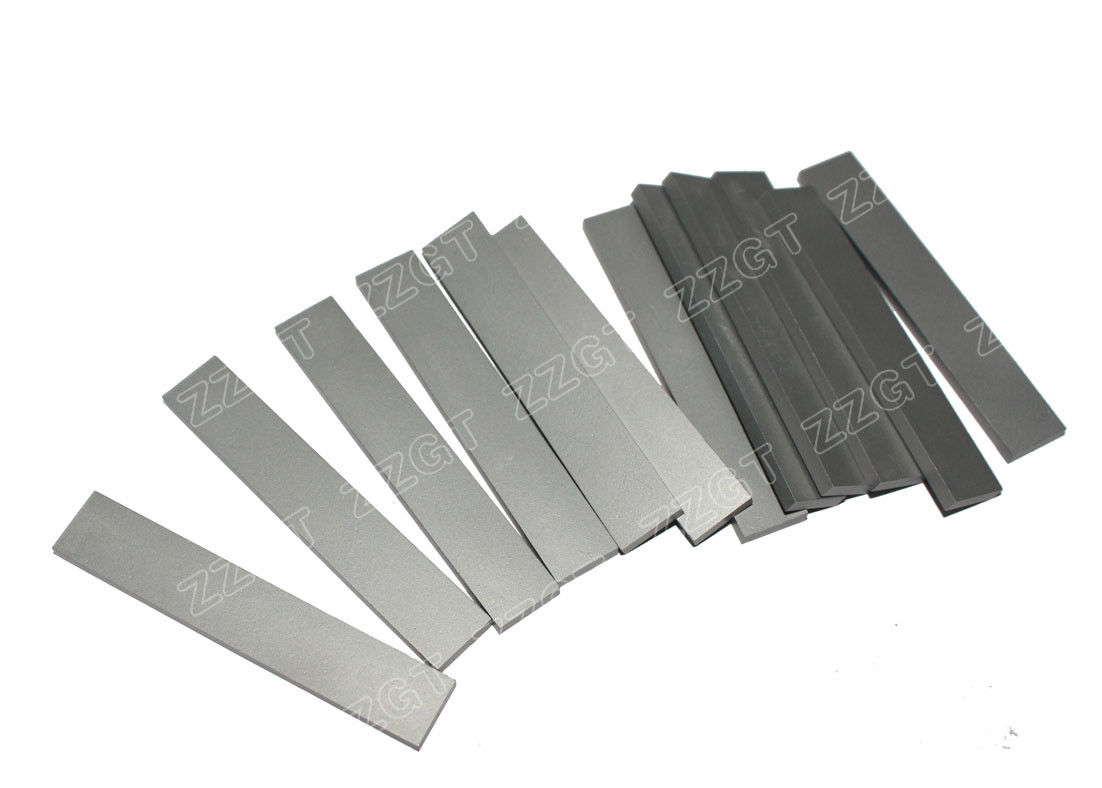

Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar

Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: 70x12x3

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
Feature: Long Life Time Surface Finish: Sandblasted
Grade: YG8 Application: Cutting Tool
High Light:

K20 Tungsten Carbide Flat Bar

,

K10 Tungsten Carbide Flat Bar

,

YG8 tungsten flat bar

Product Description

Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar

ISO standard K10 K20 Solid tungsten carbide/hard metal square flat bar cemented/carbide strips





1. We are a professional tungsten carbide manufacturer in Zhuzhou City over 13 years and have a few senior engineers who specializes in tungsten carbide field for many decades;



2.Recommended grade :YG6(K10) YG6X YG8(K20) YG15(K30), we can research and developmore suitable formula according to use condition and processing characteristics for client.



3. For your non-standard parts,we have strong ability to make mold by ourselves,and produce them per your requirements.



4. We have strict quality control and assurance system to guarantee the consistent quality.






Product Description:



Product Name hard metal strips
Material cemented carbide
Size 70x12x3
Size Tolerance standard tolerance
Color Sliver grey
Recommend Grade Good wear resistance
Grain Size  Middle Grain Size
Application For Wear Parts
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015



Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar 0

Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.









Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc



Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar 1



Contacts:



For further question, pls contact our sales engineer

Name:Daisy Tian

E-mail: zzgt3@gtcarbide.com

Mobile/whatsapp:+8613874120766

Want to Know more details about this product
I am interested in Solid ISO Standard K10 K20 Tungsten Carbide Flat Bar could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
