IS0 Square YG8 Tungsten Carbide Inserts With Good Surface
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Grade: | YG8 | Material: | Tungsten Carbide With Cobalt |
|---|---|---|---|
| Finished: | Sandblasted | Size: | 25*25*3 |
| Application: | Cutting Tool | Advantage: | Durable |
| High Light: | YG8 Tungsten Carbide Inserts,Sandblasted Tungsten Carbide Inserts,YG8 cemented carbide inserts |
||
Product Description

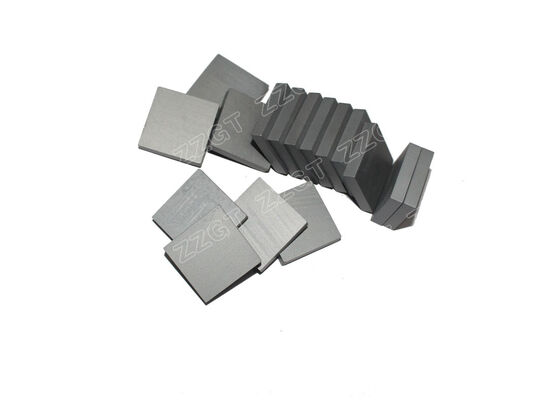

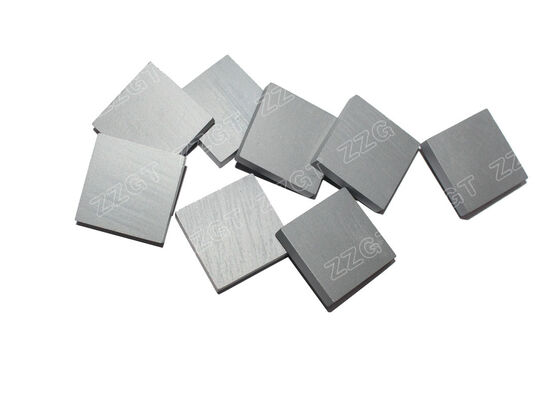

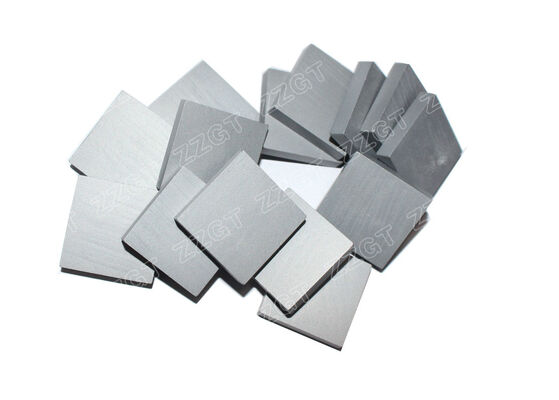

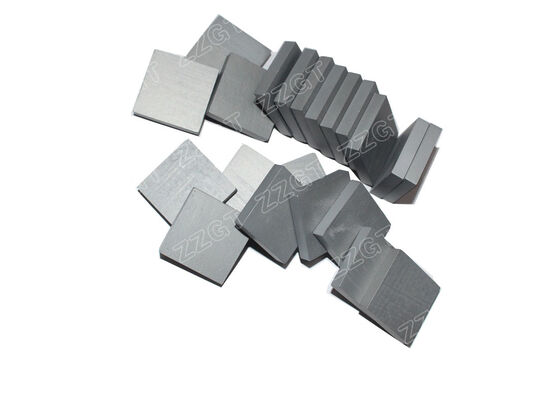

IS0 Square YG8 Tungsten Carbide Inserts With Good Surface
IS0 certificate tungsten carbide square inserts with good surface
1) manufacturer over 30 years experience
2) available for logo laser print and sample scan for mould
3) superior raw material to compound for your grade hardness.
4) annual award for quality company by government
5) shorter delivery by stocking hardened blanks
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
• Dependable cemented carbide with fracture toughnesses for heading and nut forming
• Long wearing cemented carbide grades that meet industry requirements for extrusion applications
• Higher yields resulting from Hyperion's quality cemented carbides
• Higher output with tailor-made tolerance options.
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
*HIP sintering furnace
*Spraying Draying system
*200T TPA acutomatic press machine
*CNC Grinder
*Spark Erosion machine
*Wire cutting machine,etc
