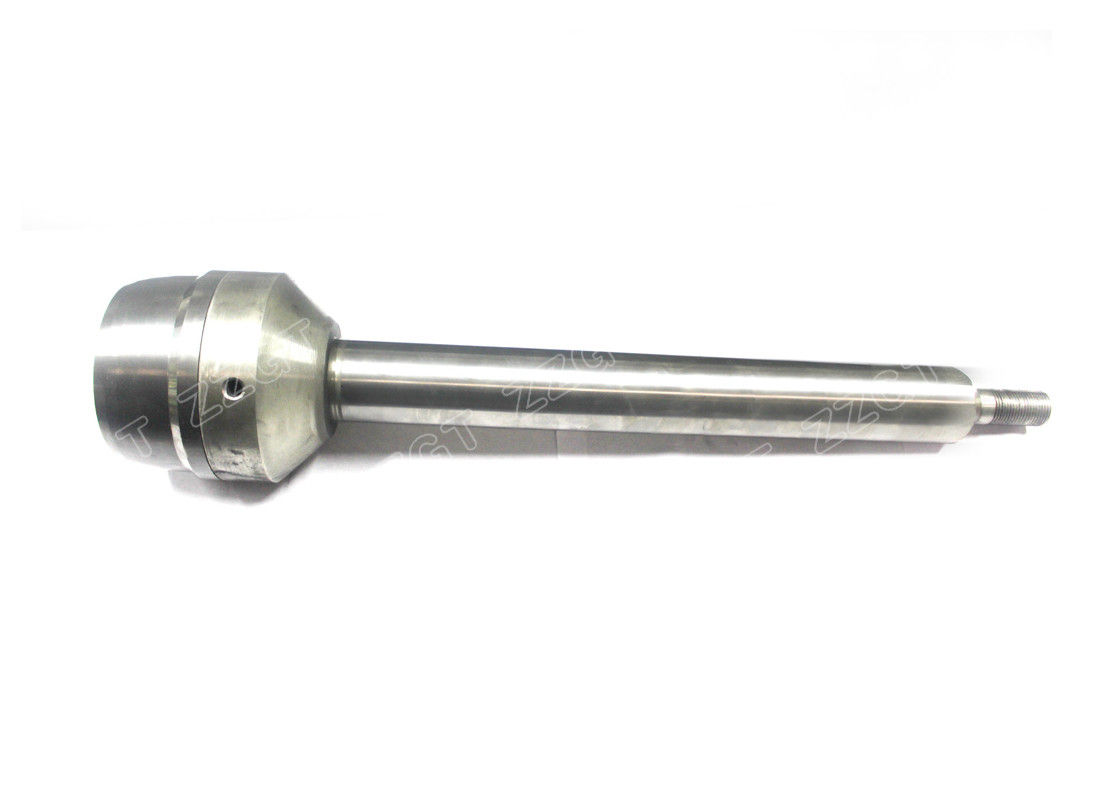

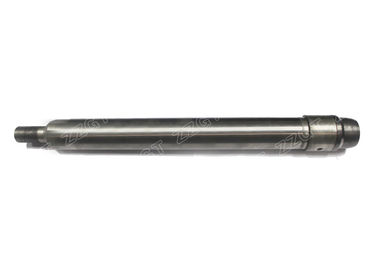

ISO Custom Tungsten Carbide Products Valve Core YG8 For Parts Of Valve
Product Details:
| Place of Origin: | ZHUZHOU |
| Brand Name: | Gingte |
| Certification: | ISO009:2015 |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KG |
|---|---|
| Price: | negotiable |
| Packaging Details: | Paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Contains 100% Original Tungsten And Cobalt | Size: | According The Need Of Clients |
|---|---|---|---|
| Service: | 24-hour Online | Quality: | High Strength High Hardness High Toughness |
| Packaging: | Standard Export Packing,or Per Customer Needs | Usage: | Parts Of The Valve |
| High Light: | tungsten carbide alloy products,tungsten carbide material products |
||
Product Description
factory customized tungsten carbide valve core YG8 for the parts of valve
Product Descriptions :
Tungsten carbide material features extreme wear resistance and hardness. The material is typically forged by the reaction of tungsten (W) metal and carbon (C) at 1400 to 2000°C. The result is a grey powder that can be pressed and formed into virtually any shape. When processing the powder into a shape, manufacturers use either a nickel or cobalt-bonding agent. Several chemical compositions can be used to provide better properties for varying applications.
Valves Core Size:
| industry valve number | max inflaxion pressure psl | effective length(lnch) | hole diameter in wheel(inch) |
| 412 | 65 | 0.88 | 0.453 |
| 413 | 65 | 1.25 | 0.453 |
| 414 | 65 | 1.50 | 0.453 |
| 415 | 65 | 1.75 | 0.453 |
| 418 | 65 | 2.00 | 0.453 |
| 423 | 65 | 2.50 | 0.453 |
| 415 | 65 | 1.25 | 0.625 |
Various Grades for Options:
| Grade | Physical and mechanical properties | Applications recommended | ||
| Density g/cm3 | Hardness No Less Than HRA(HV) | TRS No Less Than (Mpa) | ||
| YG6X (K10) | 14.8-15.1 | 91 | 1490 | For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress. |
| YG6 (K20) | 14.7-15.1 | 89.5 | 1650 | For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm. |
| YG8 (K30) | 14.6-14.9 | 89 | 1800 | For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts. |
Product Display :
Packing Process:
Packing Details : In cartons,wooden boxes,plastic boxes or customized.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
