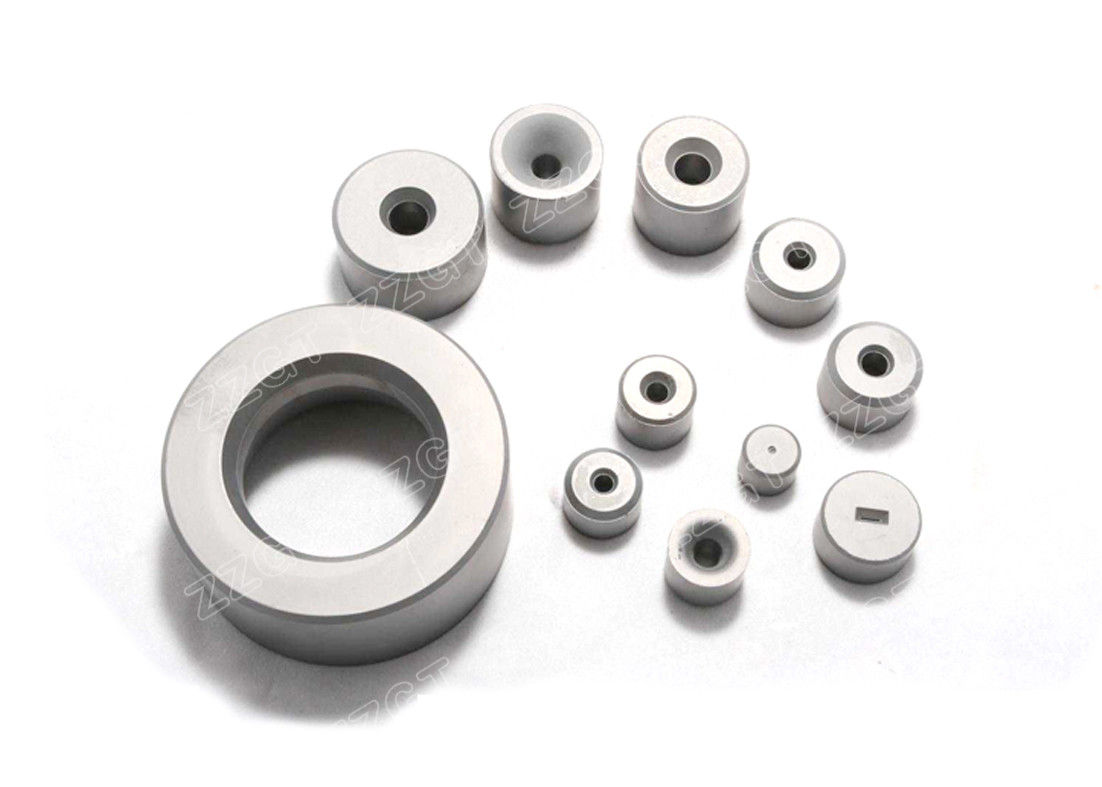

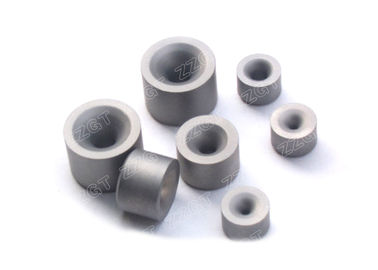

Tungsten Carbide Wire Drawing Dies , Wear Resistance Cemented Carbide Drawing Dies

Tungsten Carbide Wire Drawing Dies , Wear Resistance Cemented Carbide Drawing Dies

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: various carbide die sizes

Payment & Shipping Terms:

Minimum Order Quantity: 20KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Tungsten And Cobalt Purpose: Drawing
TRS: >3200 Roughness: 0.8 Or Others
Shipping Term: FOB,CIF,C&F Etc By Sea Or By Air Grain Size: 1.5---2.4
High Light:

dies for wire drawing

,

tungsten carbide drawing dies

Product Description

 Cemented Carbide Drawing Dies for  for high speed drawn steel wires ,copper wires , tungsten wires etc







Product Performance:



Cemented carbide drawing die nibs for wires tubes mainly used for high speed drawn steel wires ,copper wires ,tungsten wires , molybdenum wires , tantalum wires tec. Our company tensile modulusto provide precise core sizes ,consistent quality, draw metal adhesiion small, high thermal conductivity.





Product specification:



Carbide wire guide is made of tungsten carbide for its extremely hard and wear-resistant features, with sophisticated equipment for precision grinding and polishing, coupled with advanced production and processing technology, the inner and the outer diameter of the hole and tolerance R at less than 0.01mm, the surface roughness over the trough reached Ra 0.025 and above, it requires high hardness, smooth surface in use to reduce injury and other enameled wire.





Our Service:



High effect is the lifeline of fastener factory . And the service life of tool play impotant role in the field of drawing dies products.The reasonable tools design is the base of manner , Gingte pursue the stable quality, make the design better and will to cooperate with you and provide the responsibility as a tools maker , for any other size or special requirements that we are able to custom made according to client's requirements or drawings.





Various Grades for Options:



Grade Physical and mechanical properties Applications recommended
Density g/cm3 Hardness No Less Than HRA(HV) TRS No Less Than (Mpa)
YG6X (K10) 14.8-15.1 91 1490 For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress.
YG6 (K20) 14.7-15.1 89.5 1650 For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm.
YG8 (K30) 14.6-14.9 89 1800 For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts.









Various Sizes for Options:

Type OD ID H Tolerance
OD Id H
φD10~14×φd 10~14 1.0~5.0 15~40 D×+3% d×-3% H×+3%
φD15~24×φd 15~24 1.5~8.0 20~60
φD25~40×φd 25~40 1.5~25 30~60
φD42~95×φd 42~95 2.0~50 20~95

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Product Performance:

1. High Hardness: 6%-10% Co grade, fine to medium grain size

2. High Strength: 15%-25% Co grade, medium to coarse grain size

3. Good Wear Resistance: Fine to Ultrafine grain size, hardness can reach 92-93HRA









Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008





Why Choose Us ?

1. Proffessional cemented carbide manufacturer over 10 years.

2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.

3. Annual production capacity over 400tons.

4. More than 10000 sets of exisiting non-standard molds,fast delivery!

5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.

6. ISO9001:2008 Quality Management System.







Packing Process:

Full Size Fast Delivery Cemented Carbide Pellets for Extrusion Dies





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
